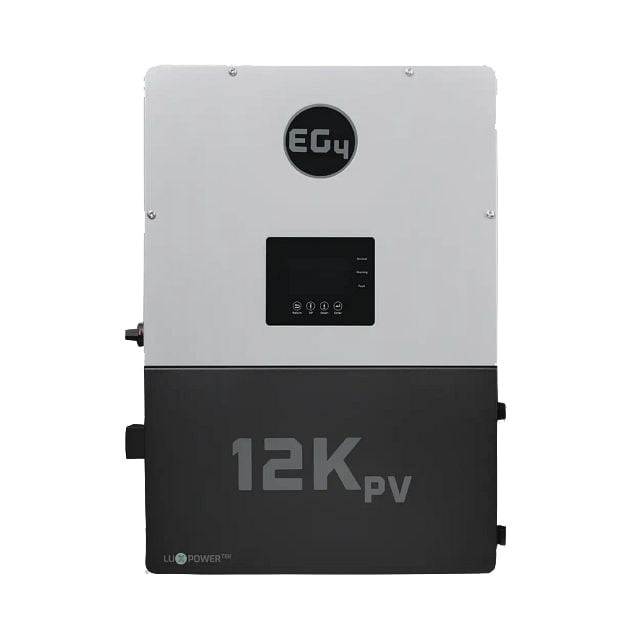

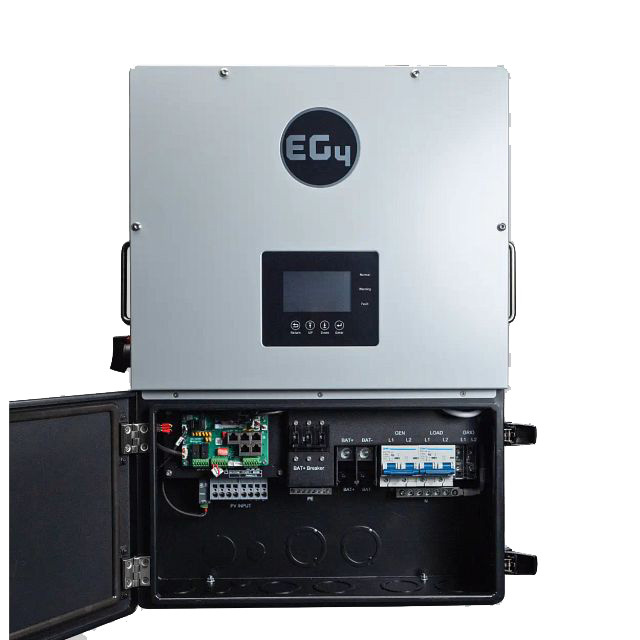

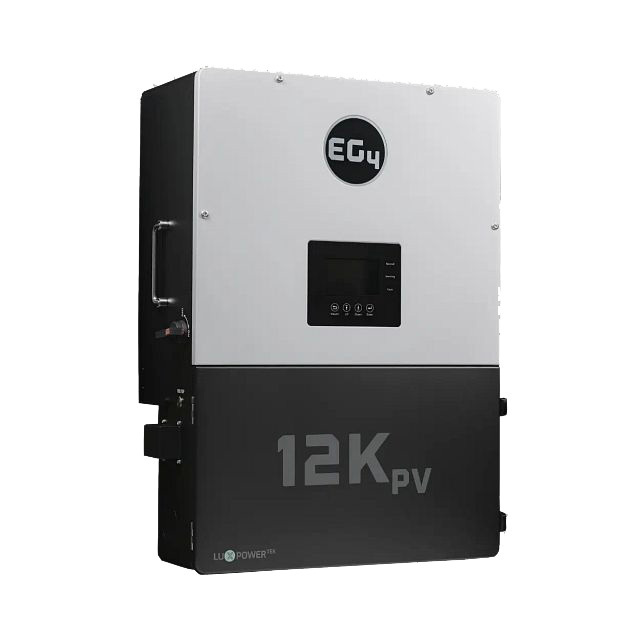

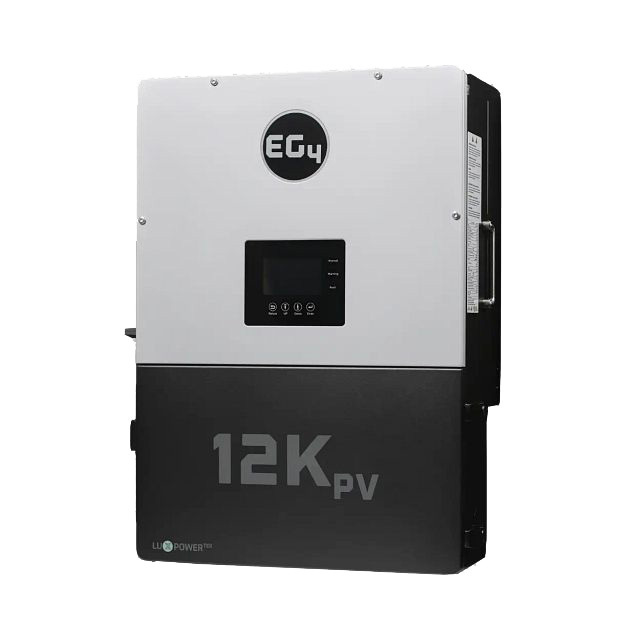

Briggs & Stratton EG4® 12KPV Inverter

Contact us for price

Stock status: Call Store for Availability

Easily integrate solar power into your current energy system or start a new one with the EG4® 12kPV 48V split-phase hybrid inverter/charger. It utilizes up to 12kW of solar input, supplying up to 8kW for powering loads while using the remainder to charge your batteries. Designed for residential and light commercial applications, you can connect up to 10 units for a total power output of 80kW. The EG4 12kPV is designed to be compact and affordable, and its modular design allows for easy expansion. Users can monitor and update systems remotely using the EG4 monitoring website/app for added control and flexibility. To learn more, download the spec sheet and installation guide.

Call Us Now

Specs

  EG4 12PV
Battery Input Voltage 48V
Rapid Shutdown Capable YES
Maximum Paired Solar (DC Input) 15000W
Integrated MPPT Charge Controllers 2
Maximum Continuous Power 8000W
Maximum Output Power 16000W
Instantaneous Power (100ms) 16000W
Surge Power (5s) 12000W
CEC Weighted Efficiency 96.40%
Parallel Stacking up to 10
Weight 110 lbs. (50 kg)
Dimensions (W x H x D) 29.5×20.5×11.2 in (750×520×285 mm)
Warranty Period 10 years
Battery Compatibility Briggs & Stratton® SimpliPHI® 6.6
Certifications UL1741, SA, SB, PCS CRD RAPID SHUT DOWN (RSD) NEC 2020:690.12 ARC-FAULT CIRCUIT INTERRUPTER (AFCI) NEC 2020:690.11 / UL1699B GROUND FAULT MONITORING (GFDI) NEC 2020:690.41(B) CSA 22.2.107.1 CSA 22.2.330 IEEE 1547.1:2020; IEEE 1547:2018 HAWAII RULE 14H CALIFORNIA RULE 21 PHASE I, II, III FCC PART 15, CLASS B
