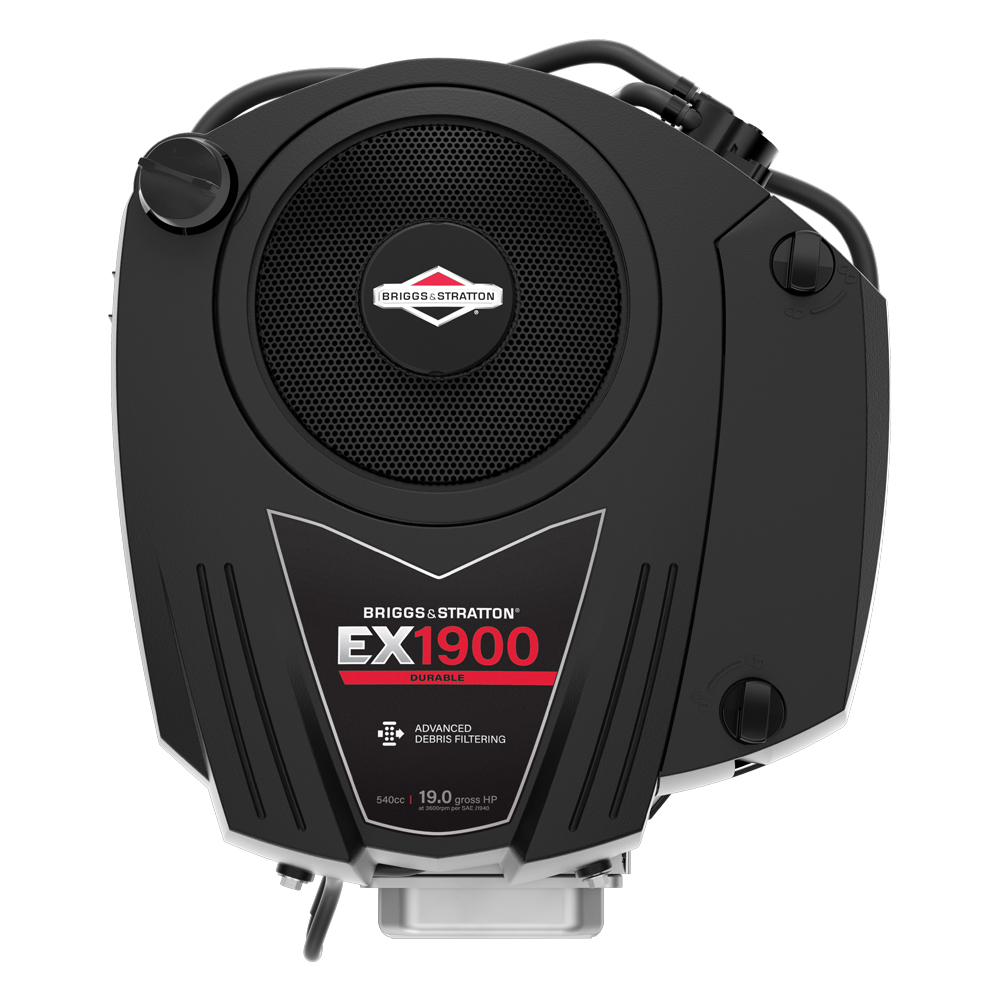

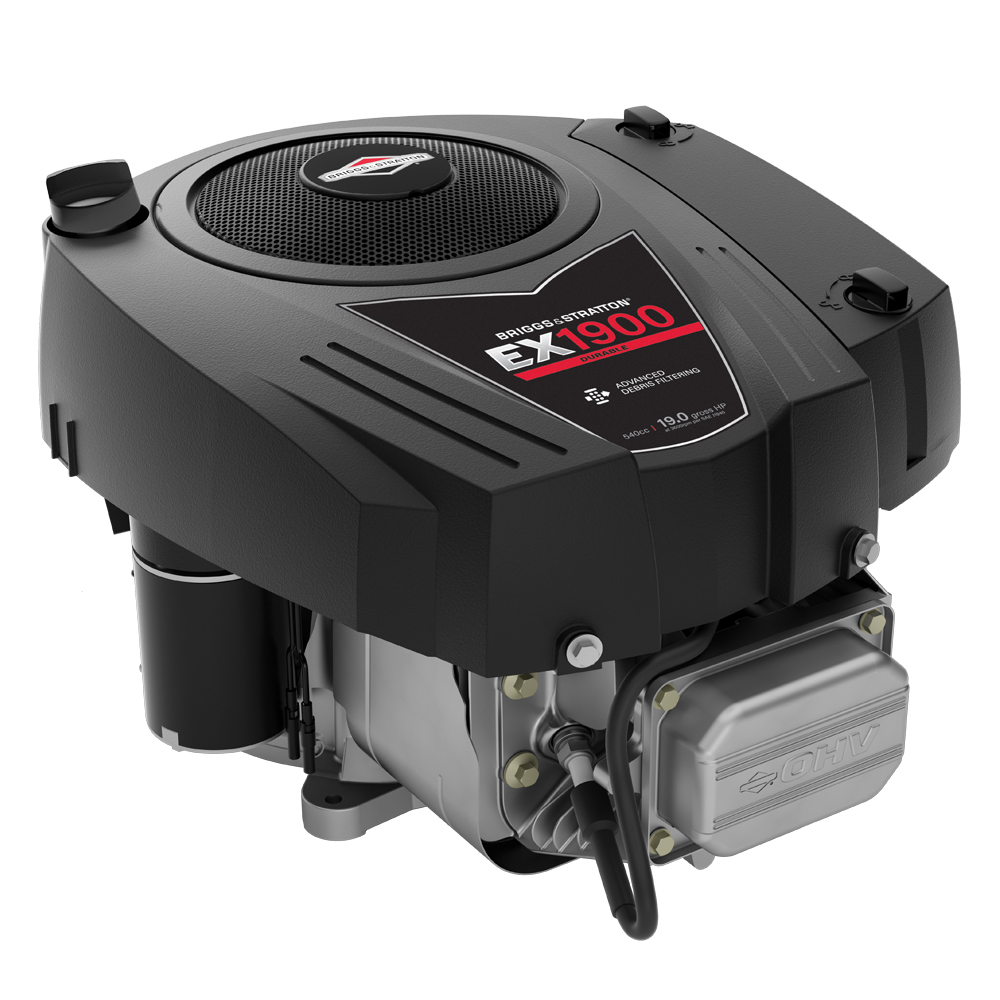

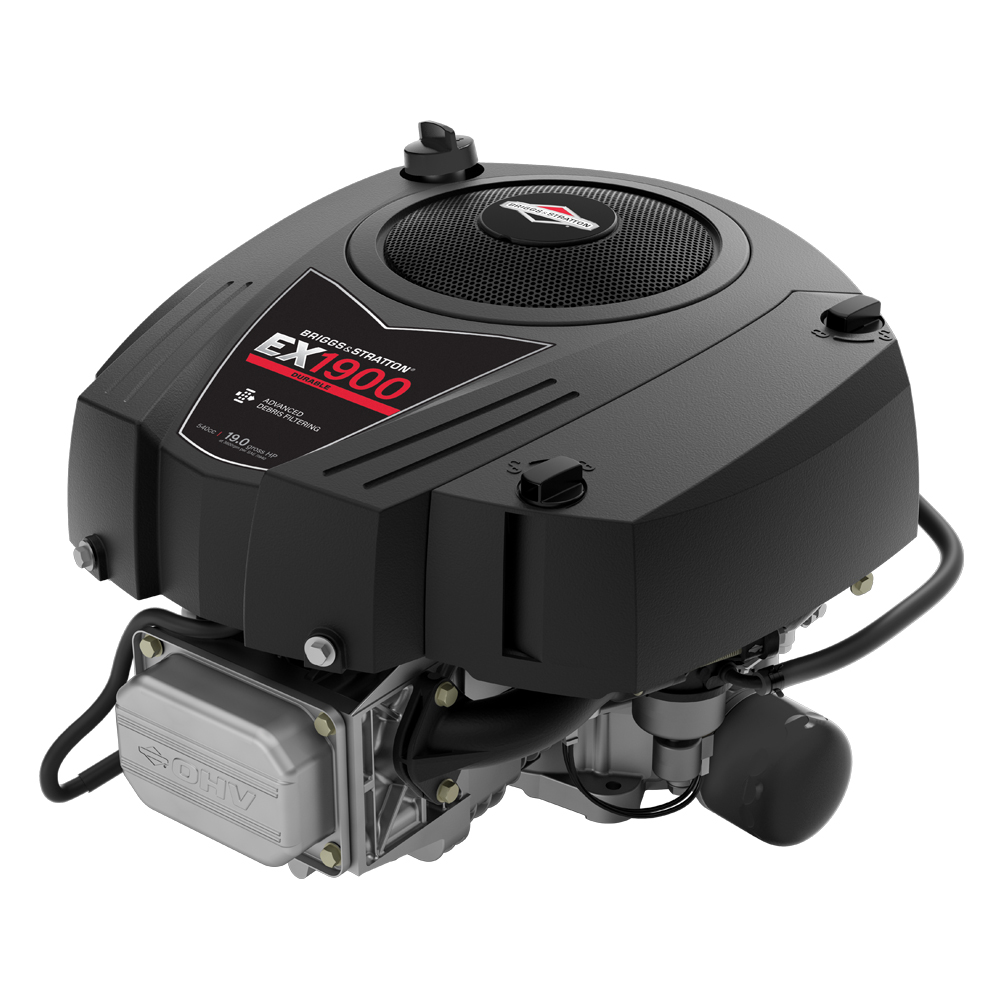

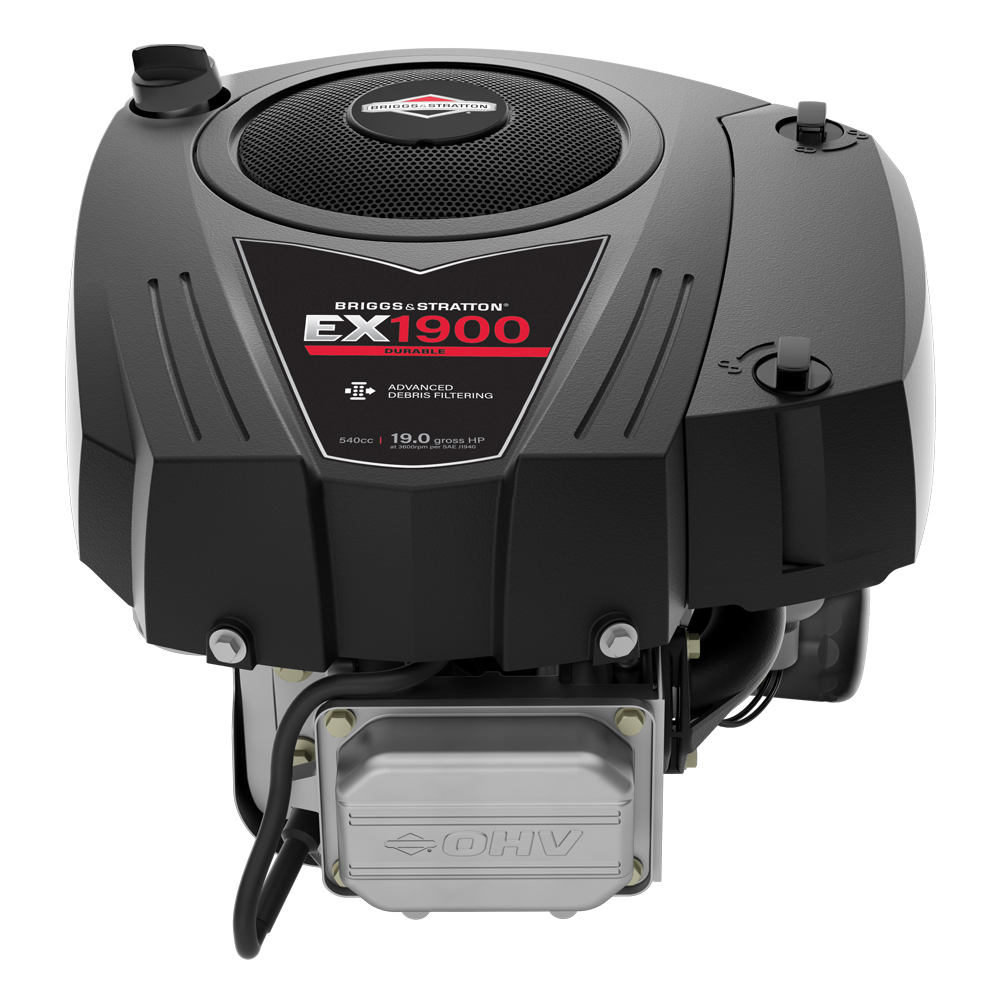

Briggs & Stratton EX Series Engines

Contact us for price

Stock status: Call Store for Availability

With more power and features, our EX Series riding mower engines give you the performance you need. The lubrication system extends engine life, and includes a standard oil filter and oil pump to push clean oil to critical components.

  • Advanced Debris Management System – Helps our engines run cleaner and longer by deflecting and ejecting grass and debris, providing a longer life.
  • Anti-Vibration System – Gives you a smoother ride, saving wear and tear on your engine, your equipment and you.

Call Us Now

Specs

Model Number
21R7
Gross Horsepower (ft-lbs)*
10.5
Engine Displacement (cc)
344
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
17.8
Width (in)
15.5
Height (in)
12.9
Weight (lbs)
66
Bore (in)
3.44
Stroke (in)
2.26
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.7 (optional)
Lubrication System
Partial Lubrication System
Oil Capacity (oz)
48
Oil Filter
Standard
Starter
Electric Start, Recoil Optional
Air Filter
Cartridge Air Cleaner with Advanced Debris Management
Muffler
Optional
Certified Power Rating
Download Power Curve
Fuel Shutoff Valve
Optional

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
21R8
Gross Horsepower (ft-lbs)*
11.5
Engine Displacement (cc)
344
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
17.8
Width (in)
15.5
Height (in)
12.9
Weight (lbs)
66
Bore (in)
3.44
Stroke (in)
2.26
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.7 (optional)
Lubrication System
Partial Lubrication System
Oil Capacity (oz)
48
Oil Filter
Standard
Starter
Electric Start, Recoil Optional
Air Filter
Cartridge Air Cleaner with Advanced Debris Management
Muffler
Optional
Certified Power Rating
Download Power Curve
Fuel Shutoff Valve
Optional

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
31R5
Gross Horsepower (ft-lbs)*
13.5
Engine Displacement (cc)
500
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
18.9
Width (in)
15.5
Height (in)
12.9
Weight (lbs)
77
Bore (in)
3.56
Stroke (in)
3.06
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Partial Lubrication System
Oil Capacity (oz)
48
Oil Filter
Standard
Starter
Electric Start
Air Filter
Cartridge Air Cleaner with Advanced Debris Management
Muffler
Optional
Certified Power Rating
Download Power Curve
Fuel Shutoff Valve
Optional

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
31R7
Gross Horsepower (ft-lbs)*
15.5
Engine Displacement (cc)
500
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
18.9
Width (in)
15.5
Height (in)
12.9
Weight (lbs)
77
Bore (in)
3.56
Stroke (in)
3.06
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Partial Lubrication System
Oil Capacity (oz)
48
Oil Filter
Standard
Starter
Electric Start
Air Filter
Cartridge with Advanced Debris Management
Muffler
Optional
Certified Power Rating
Download Power Curve
Fuel Shutoff Valve
Optional

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
31R9
Gross Horsepower (ft-lbs)*
17.5
Engine Displacement (cc)
500
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
18.9
Width (in)
15.5
Height (in)
12.9
Weight (lbs)
77
Bore (in)
3.56
Stroke (in)
3.06
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Partial Lubrication System
Oil Capacity (oz)
48
Oil Filter
Standard
Starter
Electric Start
Air Filter
Cartridge with Advanced Debris Management
Muffler
Optional
Certified Power Rating
Download Power Curve
Fuel Shutoff Valve
Optional

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
33R8
Gross Horsepower (ft-lbs)*
19
Engine Displacement (cc)
540
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
18.9
Width (in)
16.2
Height (in)
12.9
Weight (lbs)
77
Bore (in)
3.70
Stroke (in)
3.06
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Full Pressure Lubrication
Oil Capacity (oz)
48
Oil Filter
Standard
Starter
Electric Start
Air Filter
Dual Element Cartridge with Advanced Debris Management
Muffler
Optional
Certified Power Rating
Download Power Curve
Fuel Shutoff Valve
Optional

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
