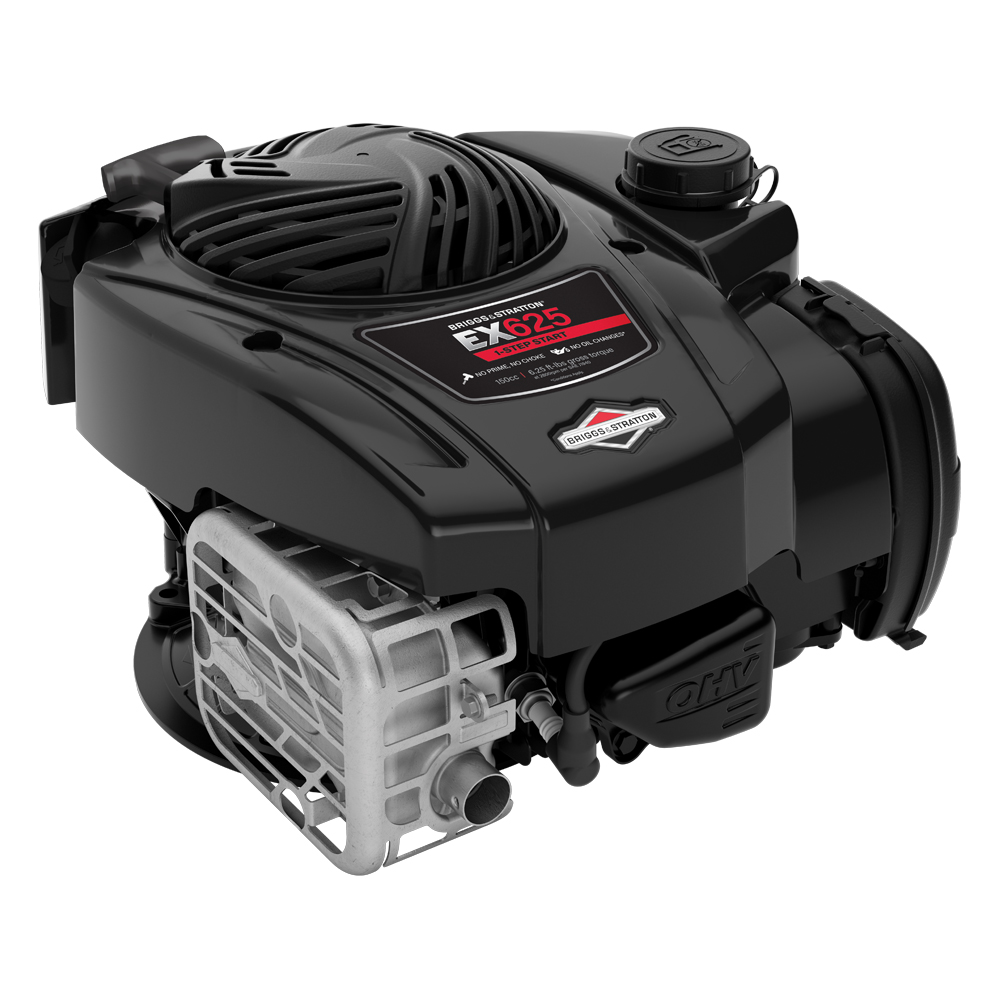

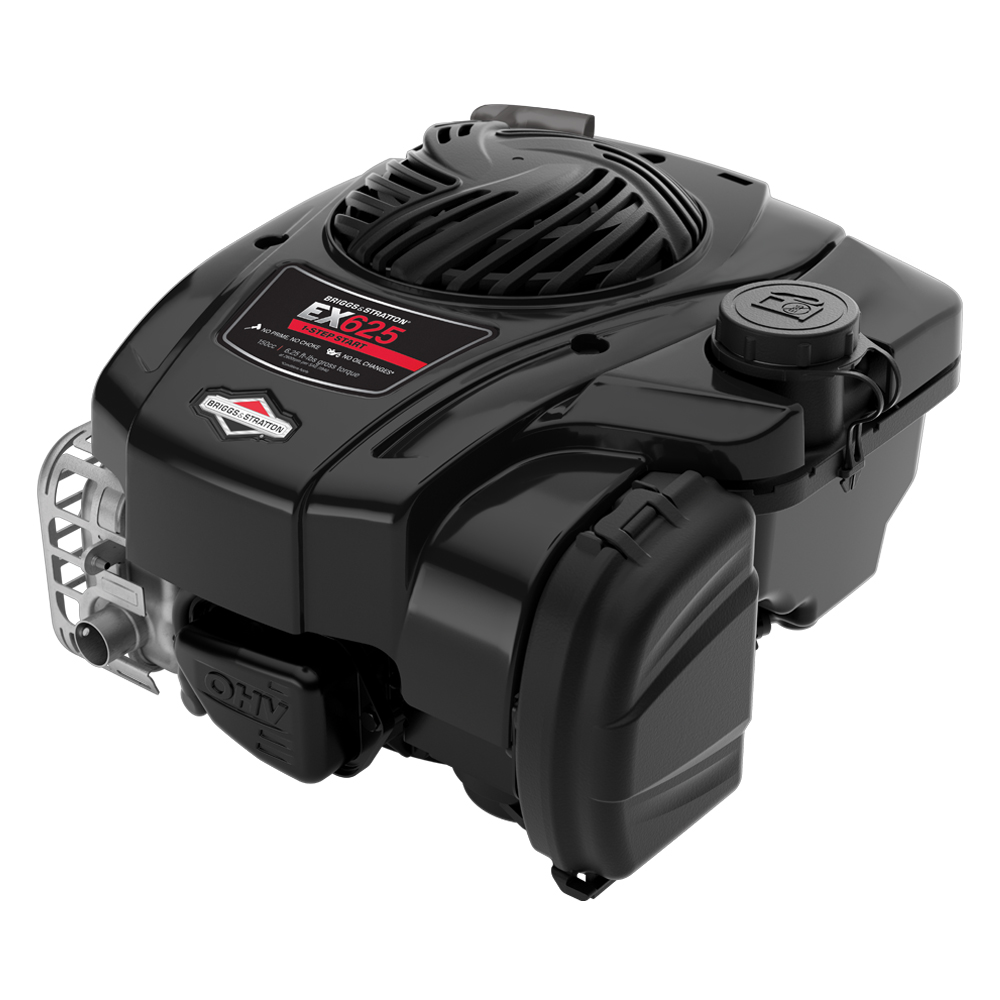

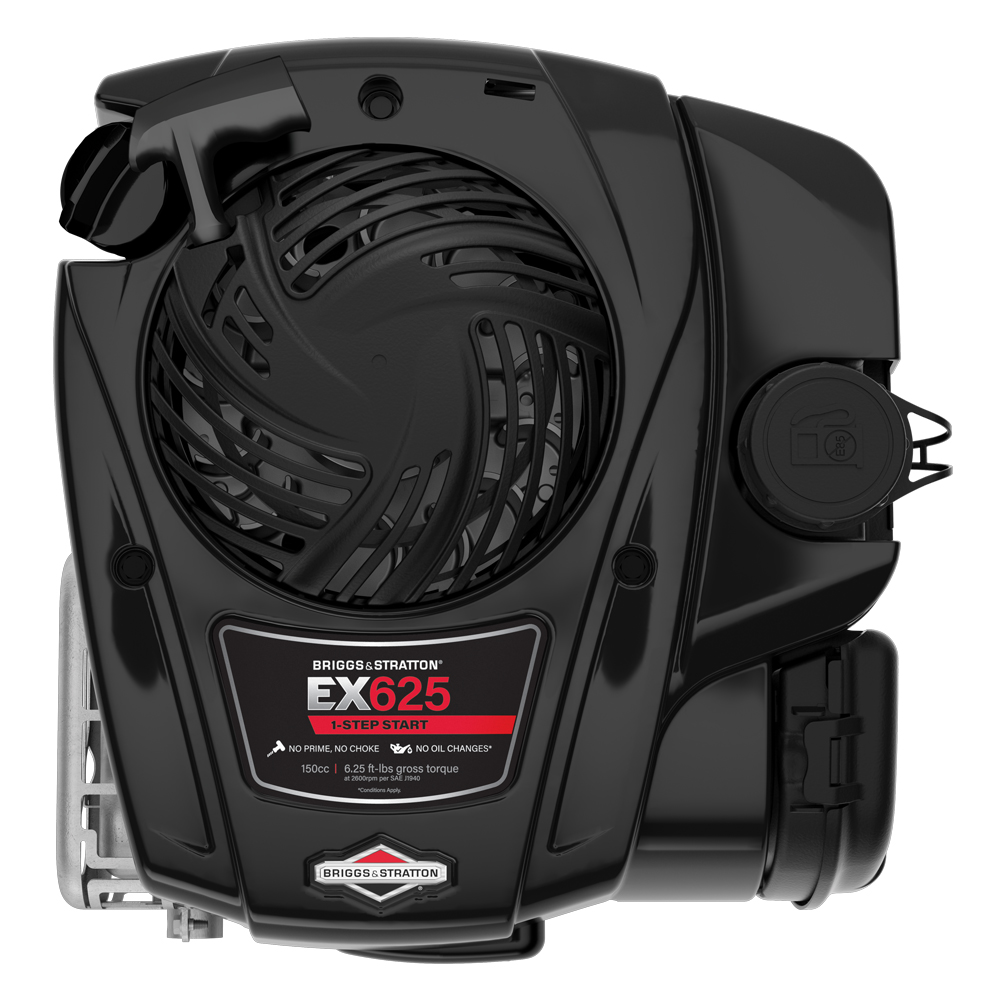

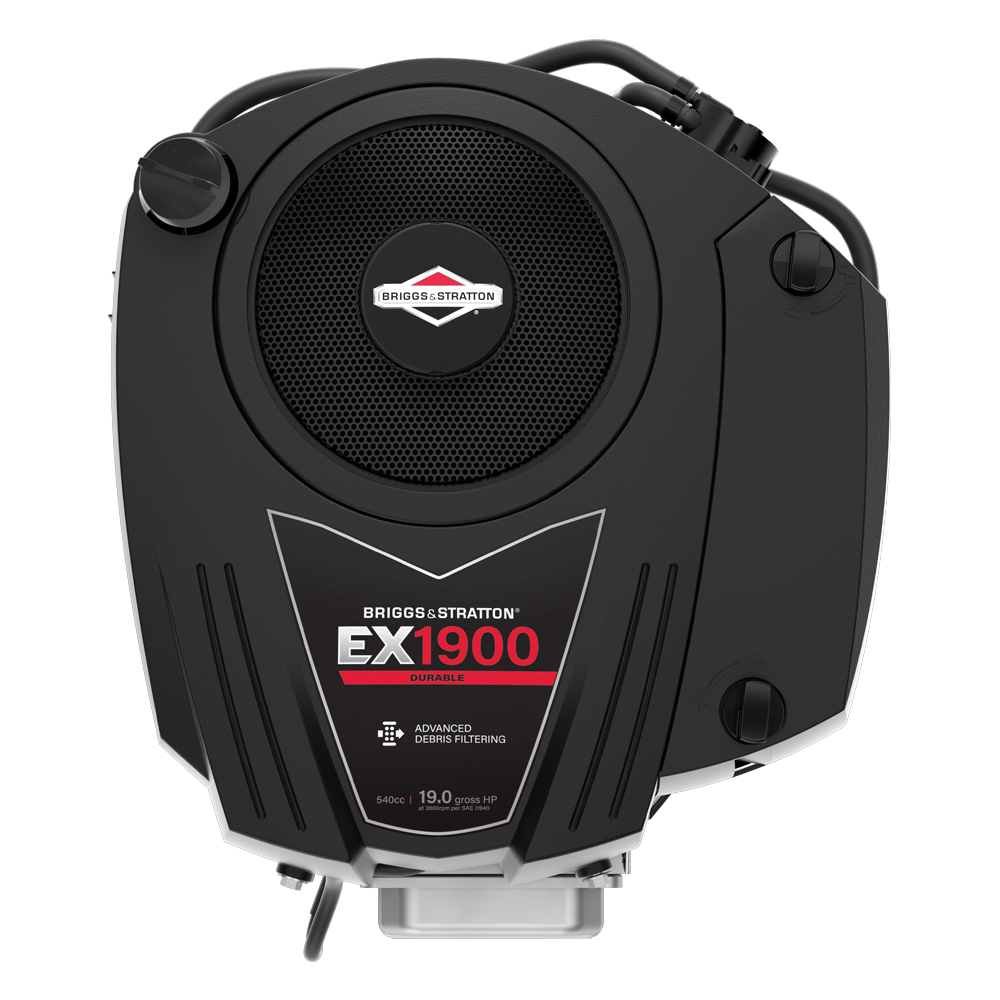

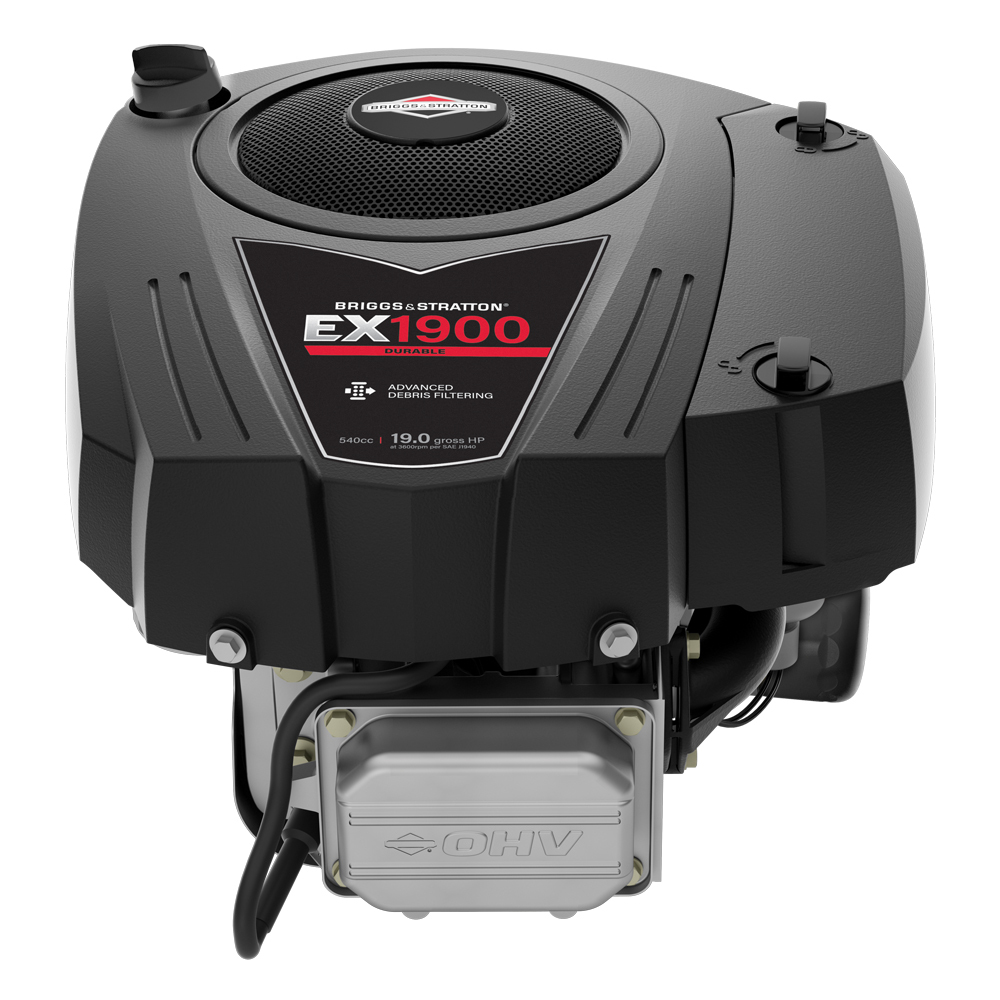

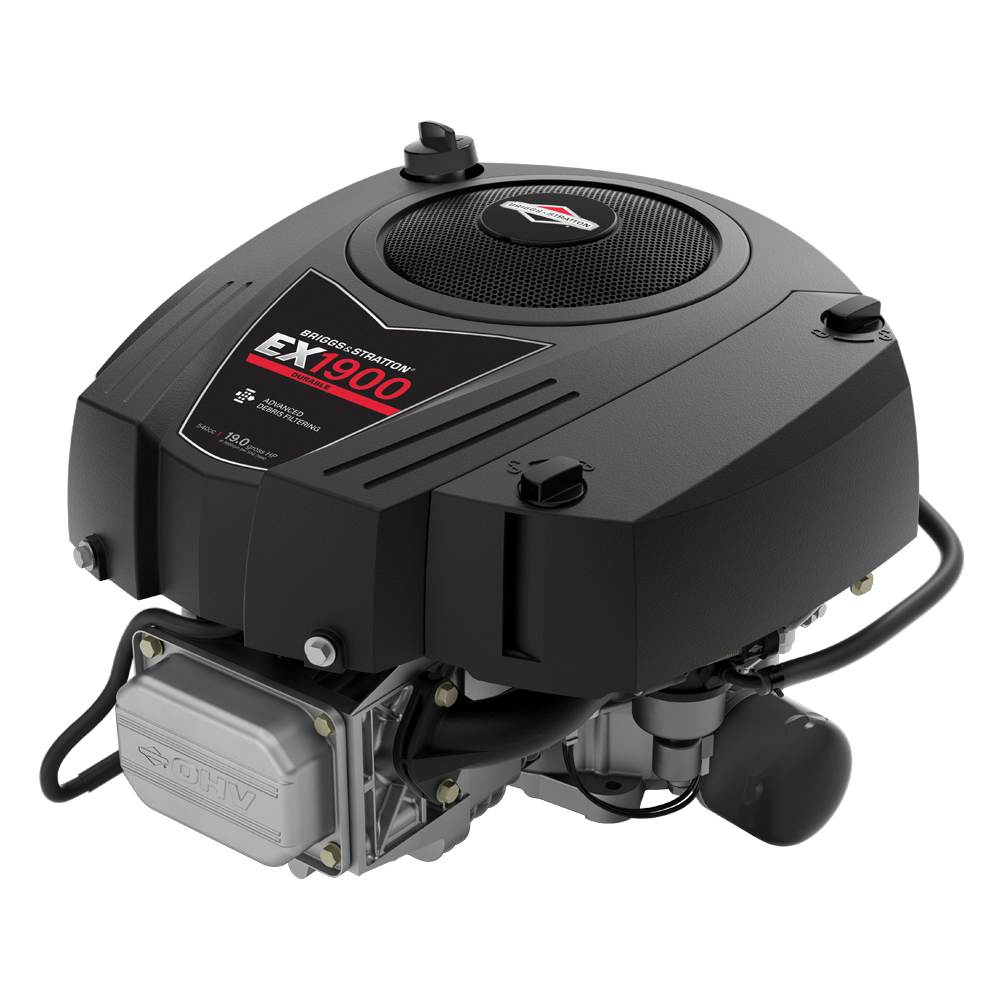

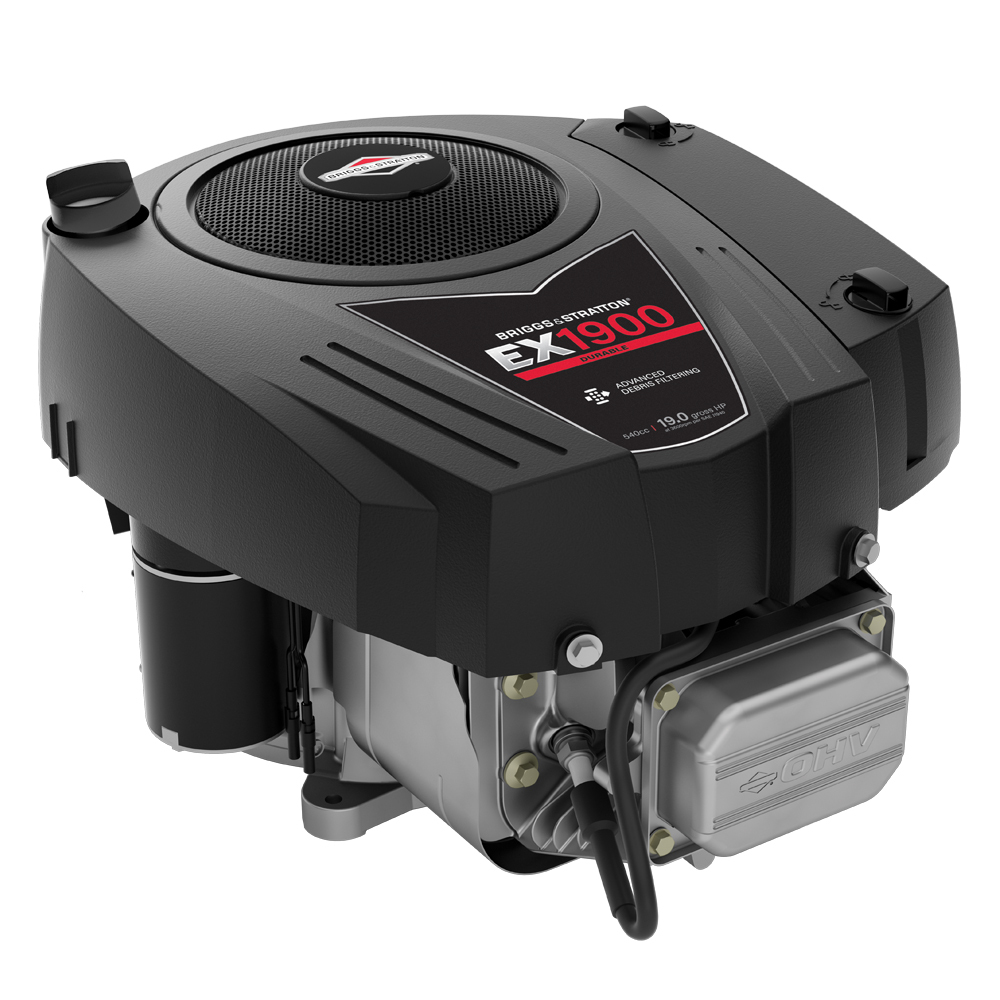

Briggs & Stratton EX Series Engines

Contact us for price

Stock status: Call Store for Availability

With more power levels and two Briggs & Stratton innovations, our EX Series push mower engines are both easier to start and easier to maintain. There’s no need to prime or choke; just pull the rope or turn the key to get started. Special engineering allows these engines to run their full life without ever needing an oil change. No hassle, no mess. Just easy.

  • No oil changes needed – just add oil as needed and go with Just Check & Add™.
  • Easy, one-step starting with .
  • Made in the USA of US and global parts.

Call Us Now

Specs

Model Number
09P7
Torque (ft-lbs, gross)*
5.5
Engine Displacement (cc)
140
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
13.8
Width (in)
12.2
Height (in)
9.6
Weight (lbs)
17
Bore (in)
2.50
Stroke (in)
1.75
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.2
Oil Capacity (oz)
15
Lubrication System
Dura-Lube Splash Lubrication
Oil Filter
N/A
Starter
ReadyStart® Starting System
Air Filter
Dual-Sealing Paper
Muffler
Super Lo-Tone™
Fuel Shutoff Valve
N/A
Certified Power Rating
Download Power Curve

*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
093J
Torque (ft-lbs, gross)*
6.25
Engine Displacement (cc)
150
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
13.8
Width (in)
12.2
Height (in)
9.6
Weight (lbs)
17
Bore (in)
2.58
Stroke (in)
1.75
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.2
Oil Capacity (oz)
15
Lubrication System
Dura-Lube Splash Lubrication
Oil Filter
N/A
Starter
ReadyStart® Starting System
Air Filter
Dual-Sealing Paper
Muffler
Super Lo-Tone™
Fuel Shutoff Valve
N/A

*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
