Specs

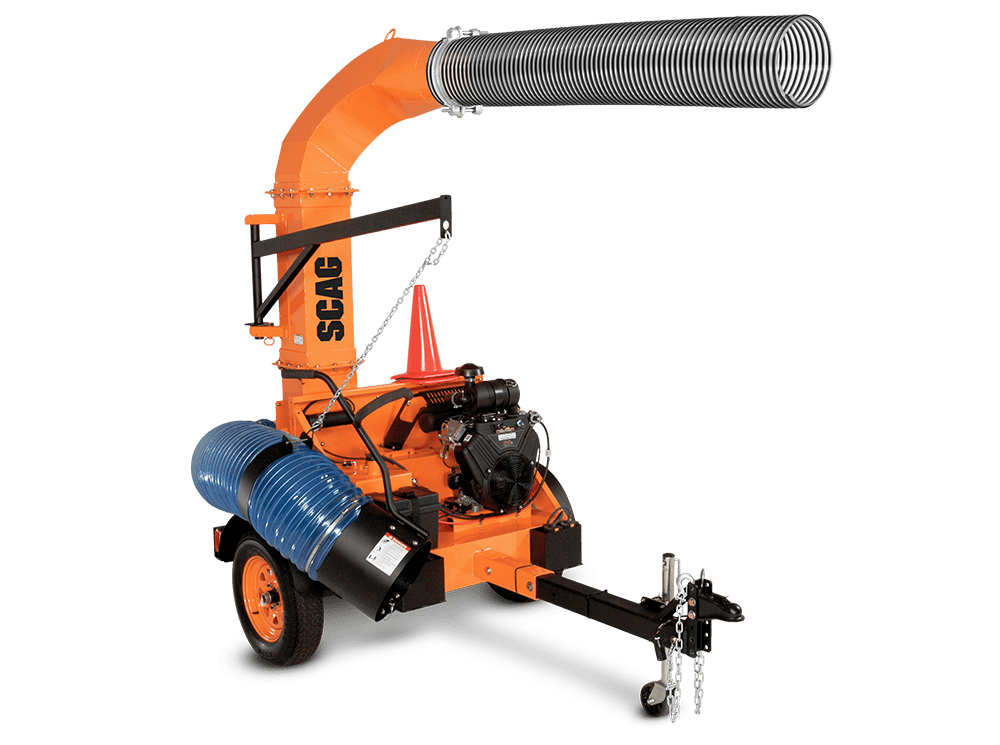

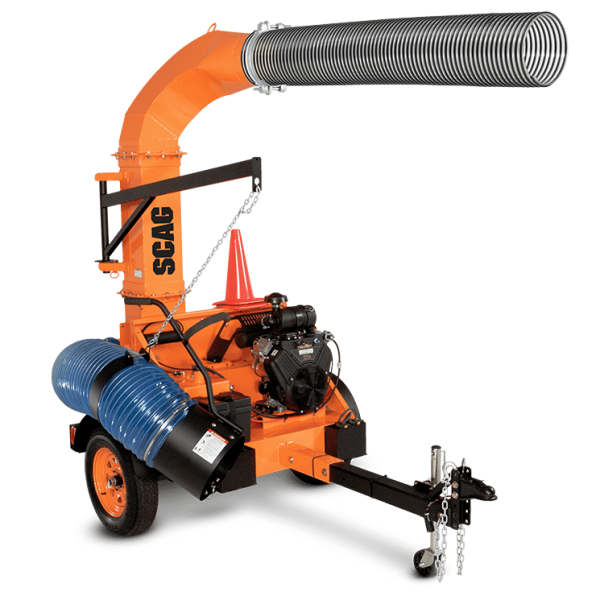

| Specification | Industrial Tow-Behind | ||
|---|---|---|---|
| Model | TLB25-35BV | TLB25-37CH | TLB25-49KBD |
| Engine | Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin, electric start | Kohler® Command PRO®, V-Twin, electric start | Tier 4 Compliant Kubota®, 4-cylinder, liquid-cooled, electric start |
| HP* | 35 | 37 | 49 |
| Fuel Capacity / Tank | 8.5 gallons – plastic tank with built-in fuel gauge | 8.5 gallons – plastic tank with built-in fuel gauge | 8.5 gallons – plastic tank with built-in fuel gauge |
| CFM Output | 6,781 | 6,909 | 7,318 |
| Frame Construction | All-steel, welded | All-steel, welded | All-steel, welded |
| Impeller Construction | 4-blade, 1/2″-thick blades, all-steel, welded | 4-blade, 1/2″-thick blades, all-steel, welded | 4-blade, 1/2″-thick blades, all-steel, welded |
| Impeller Mounting | Straight bore | Straight bore | Straight bore |
| Impeller Diameter / Width | 25″ / 9″ | 25″ / 9″ | 25″ / 9″ |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 10.5″ | 10.5″ | 10.5″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable |
| Intake Hose Specifications | 84″ length, 16″-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip | 84″ length, 16″-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip | 84″ length, 16″-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip |
| Unit Mounting | Hitch: at least 10,000 lb rating | Hitch: at least 10,000 lb rating | Hitch: at least 10,000 lb rating |
| Discharge Tube | Clear thermoplastic, 12″ diameter, 84″ length | Clear thermoplastic, 12″ diameter, 84″ length | Clear thermoplastic, 12″ diameter, 84″ length |
| Throttle Control | Commercial-grade, all-steel mechanicals | Commercial-grade, all-steel mechanicals | Commercial-grade, all-steel mechanicals |
| Highway Ready** | Yes – standard roadside package, including wheel chocks and cones | Yes – standard roadside package, including wheel chocks and cones | Yes – standard roadside package, including wheel chocks and cones |
| Axle | Heavy-duty Dexter Torflex® axle (3,500 lb) | Heavy-duty Dexter Torflex® axle (3,500 lb) | Heavy-duty Dexter Torflex® axle (3,500 lb) |
| Tires | 205 / 75 D15 highway tires with steel wheels | 205 / 75 D15 highway tires with steel wheels | 205 / 75 D15 highway tires with steel wheels |
| Trailer Width | 66.75″ | 66.75″ | 66.75″ |
| Accessories | Light Kit, Brake Kit | Light Kit, Brake Kit | Light Kit, Brake Kit |
| Height | 121.25″ | 121.25″ | 121.25″ |
| Weight | 1,700 lb | 1,700 lb | 2,300 lb |
| Warranty | 2-Year Commercial; 90-Day Rental | 2-Year Commercial; 90-Day Rental | 2-Year Commercial; 90-Day Rental |
| MSRP | $16,699 | $17,199 | $39,999 |
| * Engine power levels as rated by the manufacturer. Specifications and prices subject to change without notice. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation. All models and accessories subject to availability. ** Reference your local regulations to ensure compliance. Contact your local Scag dealer for specific availability information. | |||
