Specs
| Model | Deck Width | Engine | Horsepower | MSRP |
|---|---|---|---|---|
| SPZ-52H-22FX | 52″ | Kawasaki® FX Series | 22 | $9,529 |
| SPZ-52H-23CV | 52″ | Kohler® Command PRO® | 23 | $9,199 |
SPZ-52H-24FT  | 52″ | Kawasaki® FT Series | 24 | $9,429 |
| SPZ-52H-25ZT | 52″ | Kohler® Confidant | 25 | $8,599 |
| SPZ-52H-26BV | 52″ | Vanguard™ BIG BLOCK™ | 26 | $9,539 |
| SPZ-52H-27CX | 52″ | Briggs & Stratton® CXi Series™ | 27 | $9,199 |
| SPZ-61H-23FX | 61″ | Kawasaki® FX Series | 23 | $10,249 |
| SPZ-61H-25ZT | 61″ | Kohler® Confidant | 25 | $8,999 |
| SPZ-61H-25CV | 61″ | Kohler® Command PRO® | 25 | $9,749 |
| SPZ-61H-26BV | 61″ | Vanguard™ BIG BLOCK™ | 26 | $10,119 |
| SPZ-61H-27CX | 61″ | Briggs & Stratton® CXi Series™ | 27 | $9,749 |
| Specifications and prices subject to change without notice. Actual ground speeds may vary. Accessories subject to availability. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation. Contact your local Scag dealer for specific availability information. | ||||

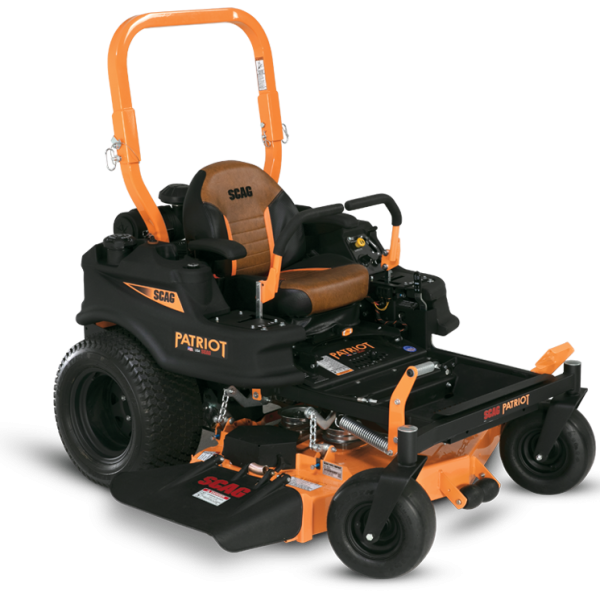

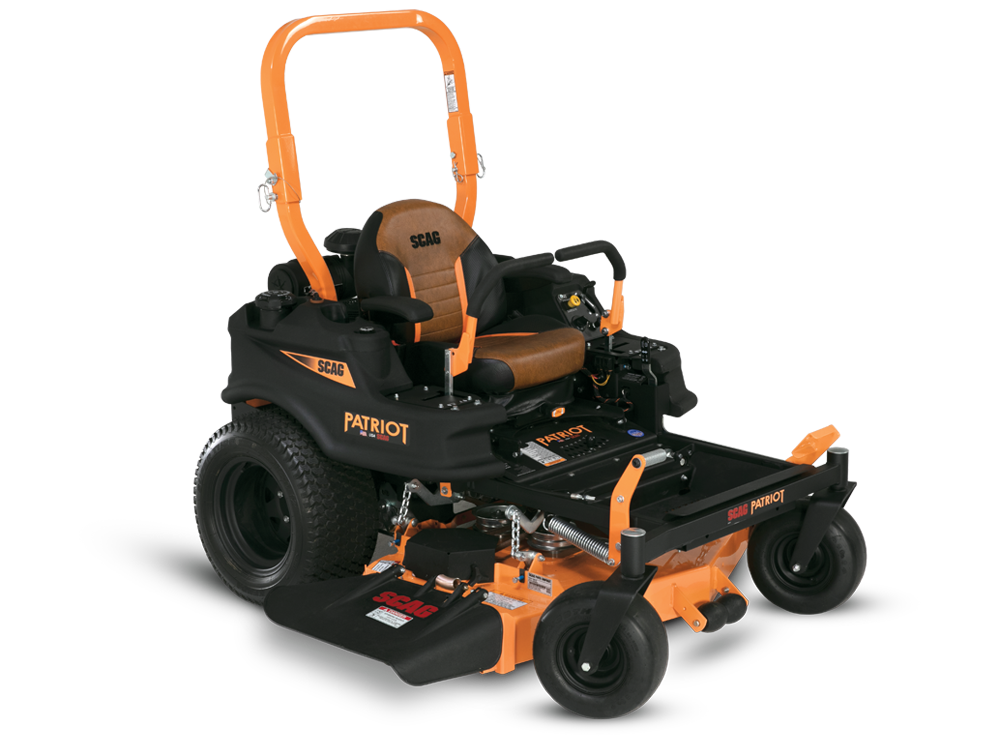

| Product Dimensions | 52″ Patriot | 61″ Patriot |
|---|---|---|
| Length | 73″ | 79″ |
| Width (chute down) | 64.5″ | 73.5″ |
| Width (chute in transport position) | 53″ | 62″ |
| Height (ROPS folded) | 46.5″ | 47″ |
| Height (ROPS up) | 61″ | 61″ |
| Weight | 907-911 lb | 952-956 lb |
| General | |
|---|---|
| Total Fuel Capacity | 6.5 gallons |
| Drive Tires | 22″ x 10.5″-12″ (52″) 24″ x 12″-12″ (61″) |
| Caster Tires | 13″ x 6.5″-6″ |
| Seat | Torsion-spring suspension seat |
| Drive System | |
| Drive System Type | Hydro-Gear ZT3100 Transaxle (52″) Hydro-Gear ZT3400 Transaxle (61″) |
| Pumps | ZT3100 Internal Pump: 10 cc (52″) ZT3400 Internal Pump: 12 cc (61″) |
| Motors | Internal Motor: 16 cc |
| Forward Ground Speed | 8.5 mph (52″) 10 mph (61″) |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Foot-operated pedal |
| Cutting Widths | 52″ and 61″ |
| Cutting Height | 1.5″ to 5″ in .25″ increments |
| Deck | |
| Spindles | Aluminum housing with sealed ball bearings. |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Deck Lift | Foot-operated pedal |
| Type | Hero Cutter Deck |
| Blade Engagement | Ogura GT2 (108 ft lb) Adjustable air-gap for extended life. |
